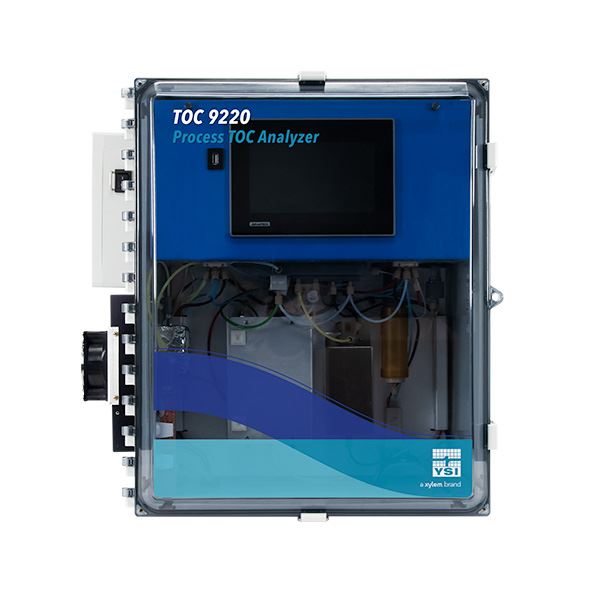

9220 Total Organic Carbon Analyzer

SKU: MIR9000e-3

The 9220 Total Organic Carbon Analyzer was developed from over 50 years of experience in measuring TOC for water quality monitoring, water treatment, and process water monitoring applications. With YSI’s heated persulfate and NDIR detection technology, the 9220 provides unmatched performance, reliability, versatility, and ease of use.

  • Brand
  • FEATURES & BENEFITS
  • Brochures and Catalogs
  • TECHNICAL SPECIFICATIONS
  • Guides
  • Manuals
  • Specification Sheets

Brand

YSI

FEATURES & BENEFITS

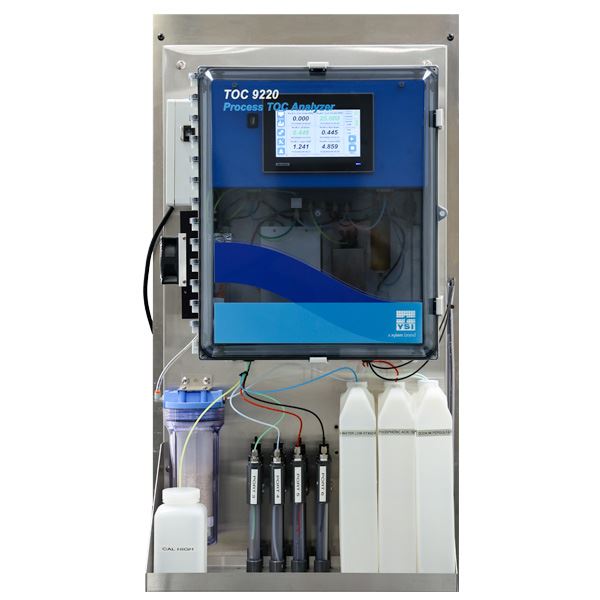

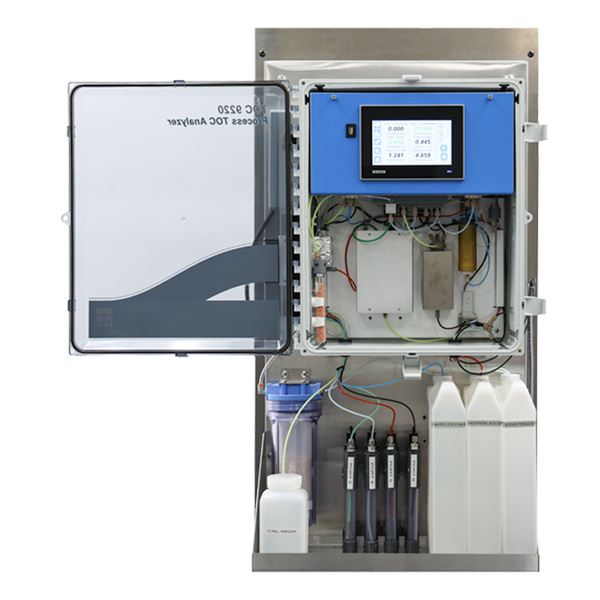

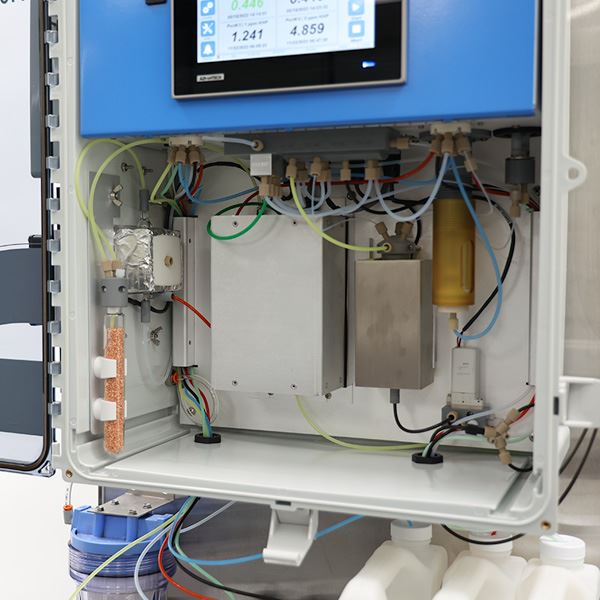

The 9220 is an online TOC analyzer that employs Heated Persulfate Oxidation with NDIR detection methodology. Standard features include four-stream analysis capability, onboard carrier gas generation, autocalibration, auto validation, and intuitive software with touchscreen operation. The 9220 is self-contained in a mounting panel with a reagent tray for quick and easy installation and commissioning. Connectivity is provided through four 4-20mA outputs (one for each sample stream), Modbus, and discrete alarm outputs. The 9220’s reliability and low-maintenance design ensure reliable data collection with minimal effort.

  • Improved process control – Optimize coagulation and flocculation of raw water to maintain total organic carbon removal targets.
  • Multi-stream capability – Monitor up to four process streams on a single analyzer at no additional cost.
  • Robust Design – Housed in an IP66 waterproof enclosure to operate in the harshest conditions.
  • EPA compliant – Compliant with US EPA regulations 415.3 (source and drinking water) and Standard Method 5310C (wastewater).
  • Autocalibration & Auto Validation – Ensures accurate measurements without regular user calibrations.
  • Readily available reagents – No need for expensive, proprietary chemicals.

Primary applications include:

  • Minimize disinfection by-product formation to ensure regulatory compliance.
  • Improve coagulant and flocculant dosing.
  • Optimize chlorine disinfection processes.
  • Monitor and control potable reuse treatment processes.

Secondary applications include:

  • Distribution system monitoring.
  • Source water monitoring.
  • Process water monitoring.

TECHNICAL SPECIFICATIONS

Performance
Operating PrincipleHeated sodium persulfate oxidation
Measurement TechniqueNon-dispersive infrared (NDIR) detection
Regulatory Method ComplianceUSEPA 415.3 (source water & drinking water)
SM 5310C (water & wastewater)
Measurement Range0 to 25 ppm (standard); adjustable up to 100 ppm
Measurement Accuracy±5%
Measurement Precision2% RSD
Limit of Detection0.015 ppm
Sample Processing/Analysis Time5 to 9-minute intervals
Sample Processing Ports6 (included)
Sample Processing Valve Controls4 (included)
Sample Processing ValvesUp to 4 (optional)
General
Operator Interface7” WSVGA display with a capacitive touchscreen (Windows® CE-based)
External Dimensions (Enclosure)58.5cm H x 55.9cm W x 25.4cm D (23in H x 22in W x 10in D)
Mounting Dimensions (Panel w/ reagent tray)113.7cm H x 55.9cm W x 28cm D (44.75in H x 22in x 11in D)
CertificationsIEC 61326-1, IEC 61010-1, cETLus (ETL and CSA Standards)
Instrument Enclosure CertificationsIP66; NEMA 4
WeightAnalyzer: 16.6 kg (36.5 lbs)
Analyzer, panel w/ reagent tray, PGM, and full reagent containers: 44.4 kg (98 lbs)
Instrument Warranty2 years
Reagents and Requirements
Reagents Required10% sodium persulfate, 5% phosphoric acid, DI water
Reagent Containers5L high-density polyurethane
Reagent Lifetime (Liquid)Nominally 30 days at 77 °F (25 °C); 90 days at temperatures less than 39 °F (4 °C)
Power and Communication
Power Requirements100 to 240 VAC, 70VA, 50/60 Hz
Input Relays2 (remote start, remote stop); 5A/30 VDC Max – potential free contact closure
Output Relays2 (system alarm, sample alarm); 5A/30 VDC Max – potential free contact closure
Analog Outputs4 (4 to 20 mA; user-configurable concentrations)
Digital OutputsRS-485/422 Modbus RTU protocol or ASCII standard
Data ExportTo PC via USB memory stick (Microsoft® Excel®-ready .csv file format)
Environmental
Operating Temperature Range41 to 113 °F (5 to 45 °C)
HumidityUp to 90% humidity (non-condensing)
Storage Temperature Range41 to 113 °F (5 to 45 °C)
