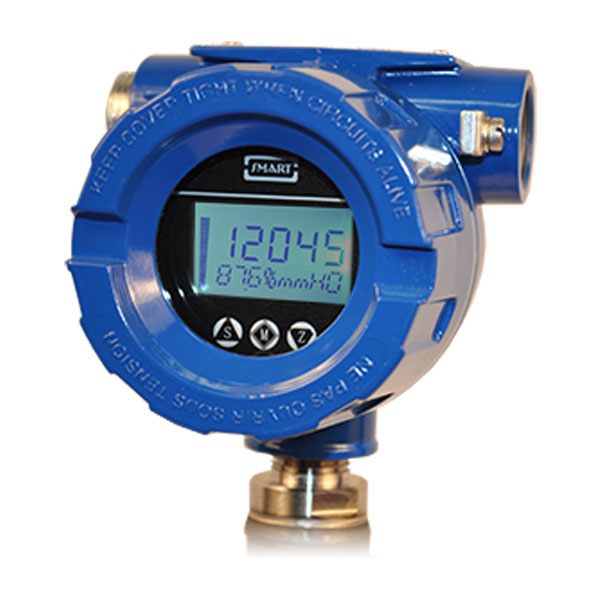

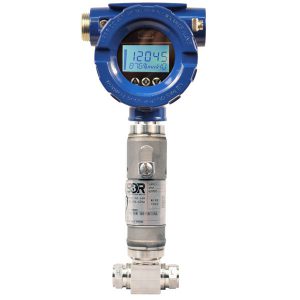

815PT Smart Pressure Transmitter

The 815PT smart pressure transmitter is a rugged, compact, loop-powered instrument that is ideally suited for hazardous locations and hostile environments where space is limited. The 815PT offers many industry standard outputs to meet applications where low-cost, discrete, and continuous monitoring is required or preferred.

The 815PT is easily configured using HART^®7 Communication Protocol and Modbus RTU Serial Communications or when setting the zero and span set points with a magnet.

• HART^®7 communication protocol with 4-20 mA output
• 1-5 VDC (low-power) mode of operation output
• Modbus RTU (RS-485) serial communications
• Configurable normally open solid state switch output (SPST)
• +/-0.10% (URL) continuous output accuracy
• Compact, 316 stainless steel, explosion-proof housing
• Local Indicating Display option available
• Hermetically sealed leads
• Zero and span magnetic targets located on the casting
• EMC (EMI/RFI) protection
• NEMA 4X, IP66 housing
• FM and ATEX/IECEx certified for hazardous locations in U.S., Canada, and Europe
• Dual Seal approval available
• Absolute Pressure range options
