Basic Bottle Sampling Systems

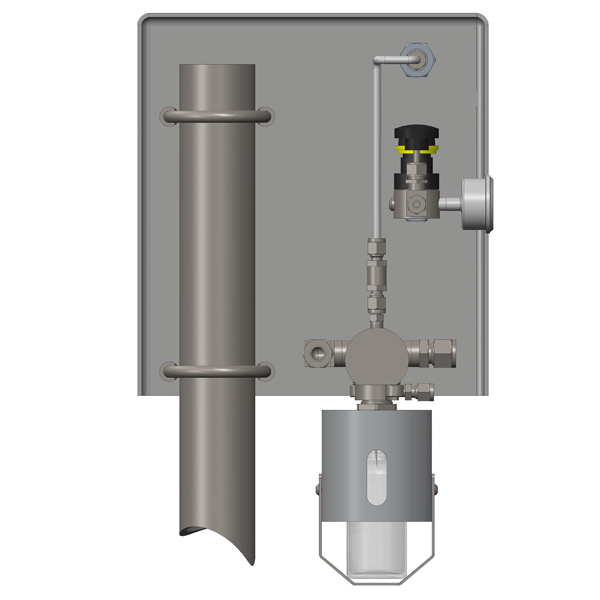

The SENSOR Basic Bottle Sampling System (BBSS) is a closed-loop liquid grab sample system ideal for processes with pressure less than 150 psig and process temperature less than 135ºF. The sample is dispensed into the sample bottle by merely turning a valve. Process pressure forces the sample through the valve into the bottle. With the SENSOR Needle Evacuation System (NES), zero dead volume is ensured throughout the sample valve assembly by forcing out any vapor-locked liquid.

• Simple, flow-thru valve design ideal for fast loop
• Zero dead volume

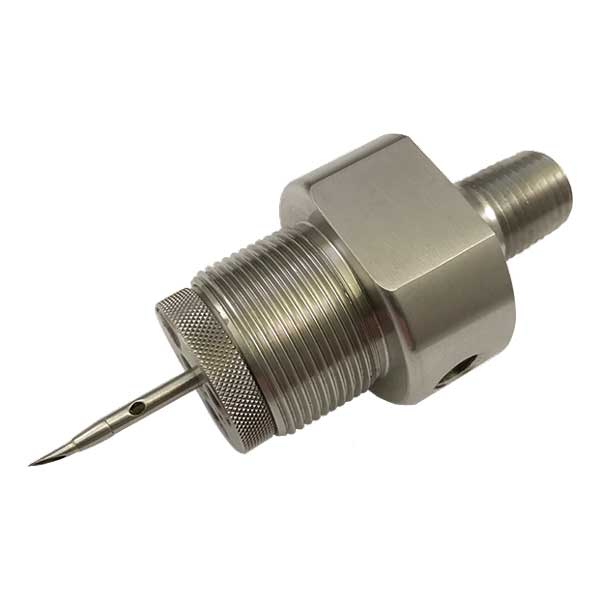

• Replaceable process and vent needles
• Available with SENSOR Needle Evacuation System for residual elimination and zero emission
• Zero emissions/captured vent
• Highly customizable based on process conditions and operator requirements
• Primary Flow-Thru Sample Valve features a side-ported needle valve with packing below the threads; ensuring that the stem will not seize due to process build-up
• Side-ported Vent Needle prevents plugging of the vent port
• 316L standard material; other materials available
• Replaceable Process and Vent Needles
• Non-metallic bottle shroud protects operator in case of a shattered bottle
• Operation and Installation Manual for each system
